About Us

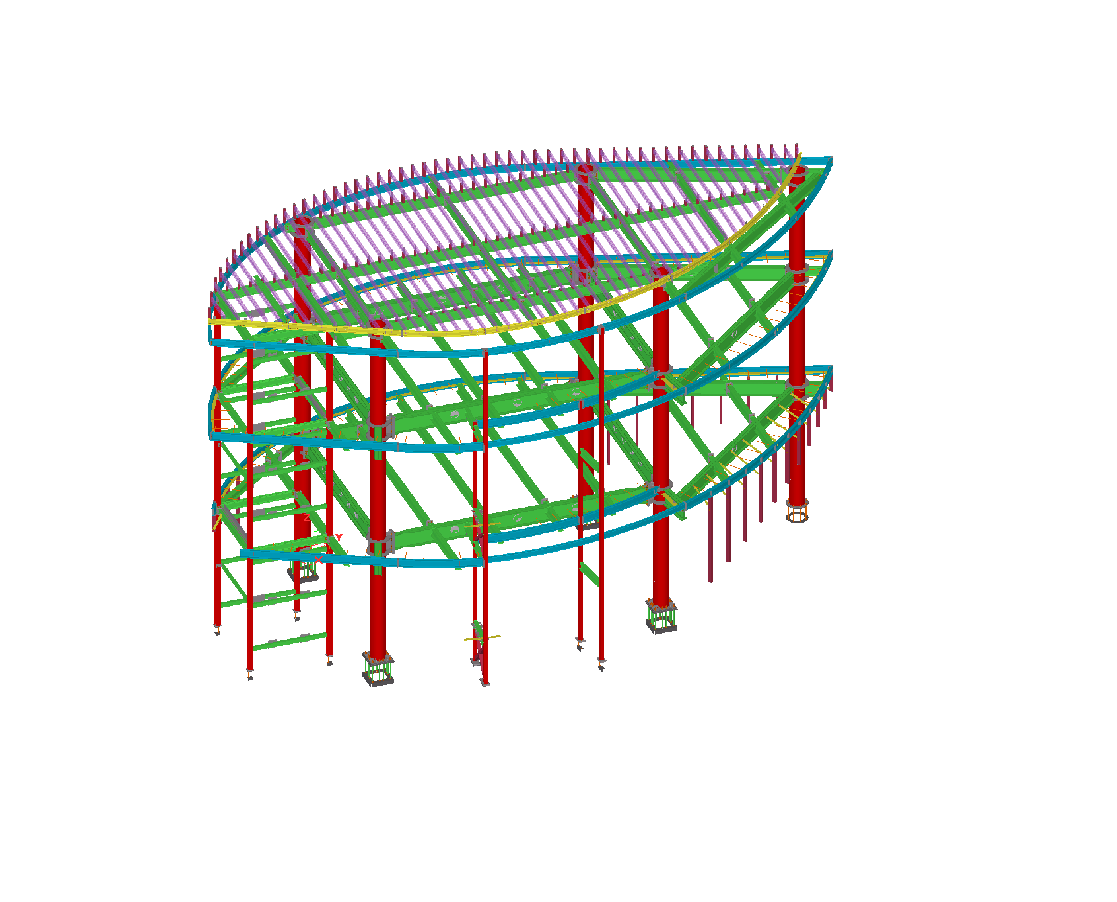

iBeam Drafting provides accurate and quality detailed drawings within your time frame at a very competitive price. We specialize in structural & miscellaneous steel detailing of any size and shape. We are using the best 3D software known as Tekla Structures to draw any type of structure and have been utilizing all its potential to suit our client’s needs.

The recently developed Trimble Connect software is now part of our collaboration process with the architects, engineers, and builders. With Trimble Connect anyone can view, review and make comments on our model.

Aside from structural steel, we can also detail other products like the following:
-steel decking (Bondek, ComFlor, HiBond, Tray-dec, Ultra Span, Deckform)
-Webforge grating & handrail

The steel detailing package that we can provide includes:
-HD Bolt plan, details & assembly drawing

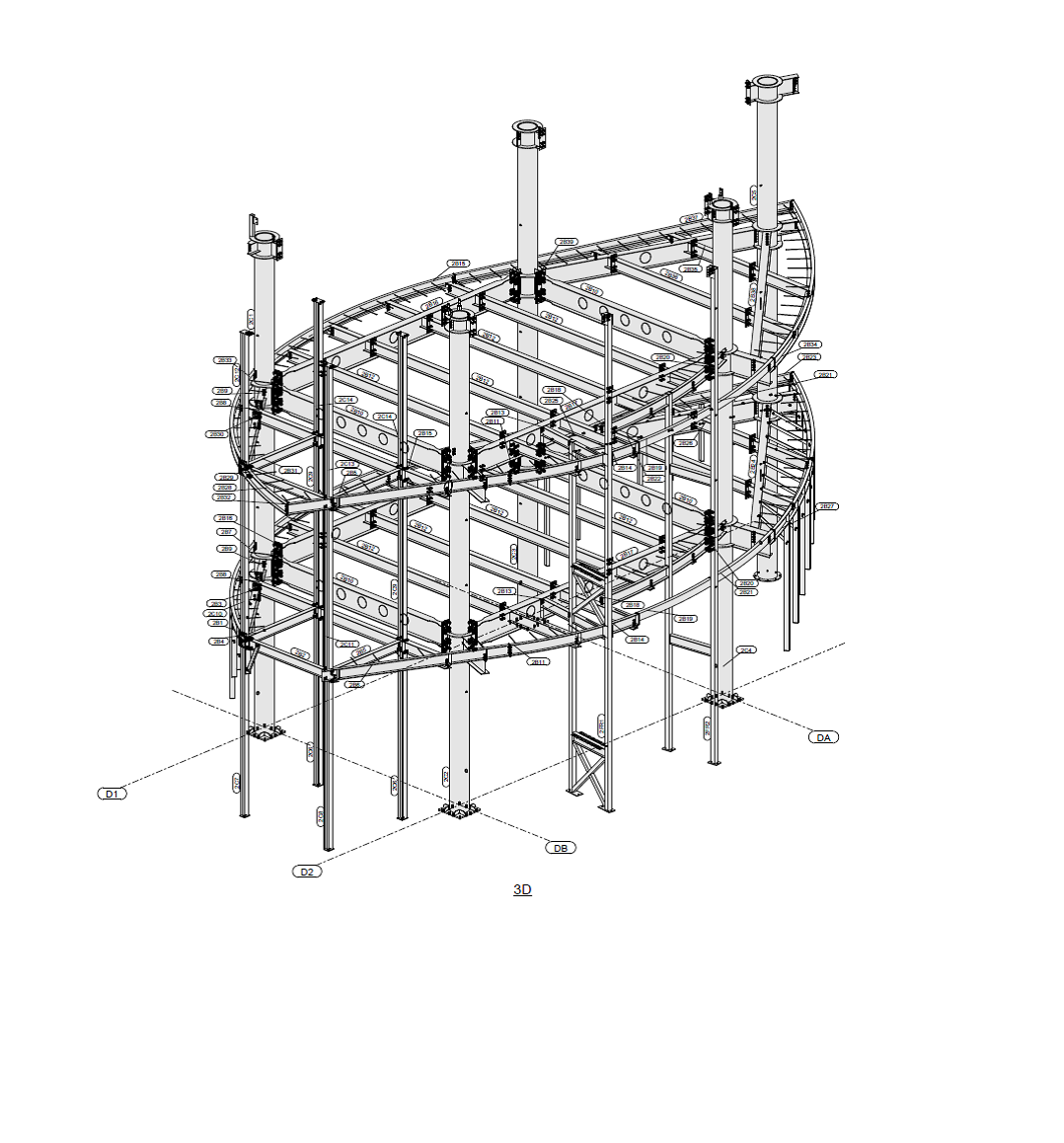

-Marking plans, elevations, sections & 3D
-Workshop drawings (assemblies & parts, purlins & girts)
-Reports (assembly, part, material, bolt summary)
-NC files, DXF files
-Roof Section/Frame lifting drawings if required on site
-.ifc model for the architect & engineer
-StruMIS v10.2 input if requested by the client
-Aconex upload of latest drawings
